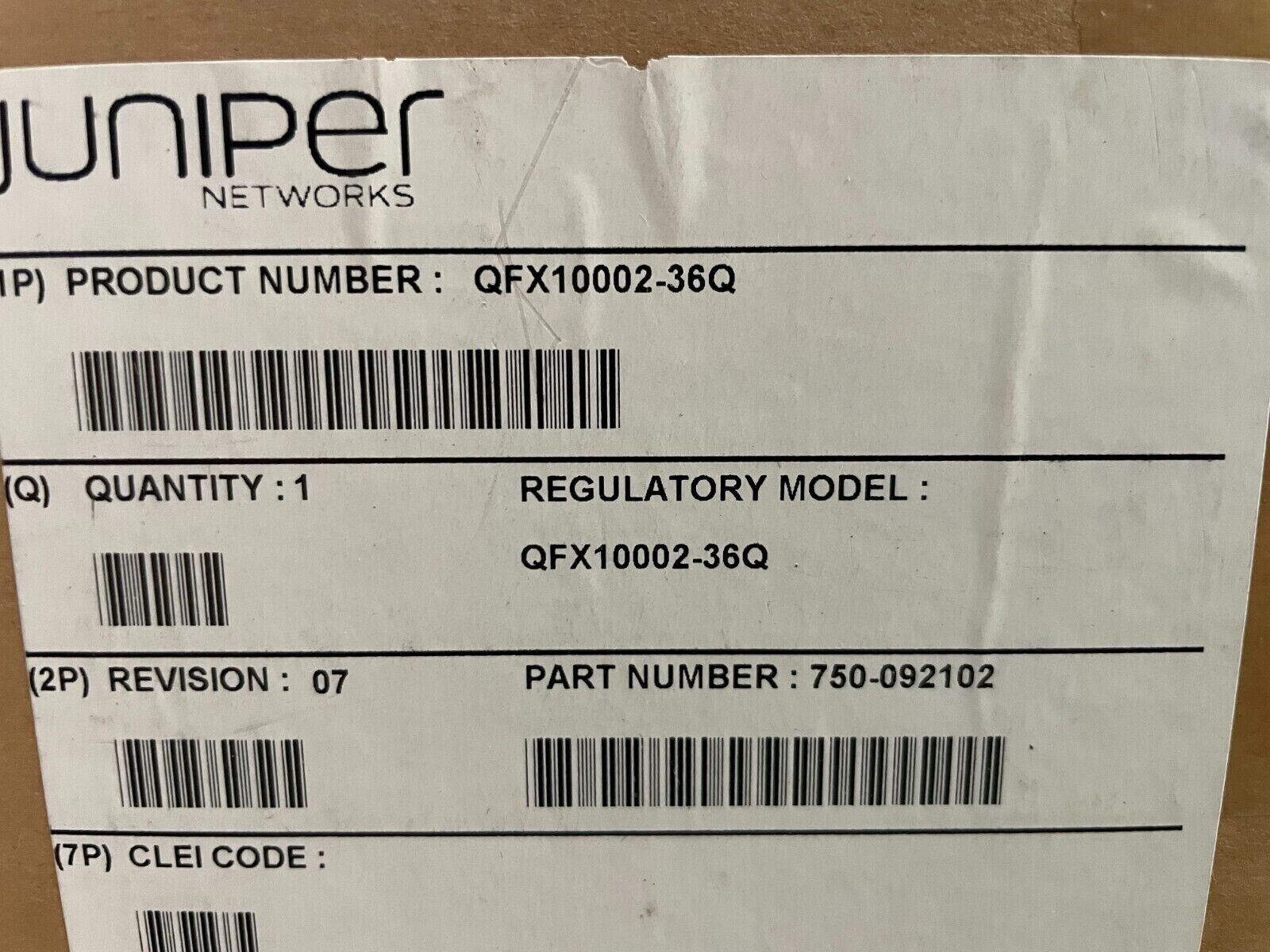

NEW OPEN BOX Juniper QFX10002-36Q QFX Series Switch 36 ports 750-092102

NEW OPEN BOX Juniper QFX10002-36Q QFX Series Switch 36 ports 750-092102

$5,999.99 USD
$5,999.99 USD
Sale Sold out
eneral Information
Category Network switches
Description Juniper Networks QFX Series QFX10002-36Q - Switch - L3 - managed - 36 x 40 Gigabit QSFP+ (breakout compatible) - rack-mountable - TAA Compliant
Manufacturer Juniper Networks
MSRP $61,050.00
UNSPSC 43222612
Main Specifications
Dimensions & Weight / Depth 78.7 cm
Dimensions & Weight / Height 8.9 cm
Dimensions & Weight / Weight 23 kg
Dimensions & Weight / Width 44.2 cm
Header / Brand Juniper Networks
Miscellaneous / Product Color Gray
Networking / Form Factor Rack-mountable
Networking / Ports Qty 36
Networking / Type Switch
Packaged Quantity 1
Service & Support / Type 1-year warranty
System Requirements / OS Required JUNOS
Dimensions & Weight
Depth 78.7 cm
Height 8.9 cm
Weight 23 kg
Width 44.2 cm
Environmental Parameters
Humidity Range Operating 5 - 90% (non-condensing)
Humidity Range Storage 5 - 95% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
Expansion / Connectivity
Interfaces
  • 36 x 40Gbit LAN QSFP+ (breakout compatible)
  • 1 x console management
  • 1 x USB 2.0 management
  • 1 x 1000Base-T RJ-45 management
  • 1 x SFP management
  • 1 x SFP+ management
General
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • ARP entries: 144000
  • Virtual interfaces (VLANs): 4000
  • IPv4 routes: 2000000
  • IPv6 routes: 2000000
  • IPv4 forwarding information base (FIB): 256000
  • IPv6 forwarding information base (FIB): 256000
  • Equal-Cost Multipathing (ECMP) ways: 64
  • IPv4 routes (Multicast): 128000
  • IPv6 routes (Multicast): 128000
  • Queues per port: 8
  • Virtual output queues: 384000
  • GRE tunnels: 4096
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
Device Type Switch - 36 ports - L3 - managed
Enclosure Type Rack-mountable 2U
Encryption Algorithm MD5, AES
Features BOOTP support, RARP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Unicast Reverse Path Forwarding (URPF), IPv4 support, DHCP relay, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, redundant hot swappable fans, Class of Service (CoS), sFlow v5, IGMP proxy, Precision Time Protocol (PTP), FCoE support, Virtual Output Queuing (VOQ), system log, Explicit Congestion Notification (ECN), EVB Type-Length-Value (TLV), Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), 12GB packet buffer
Jumbo Frame Support 9216 bytes
MAC Address Table Size 256K entries
Performance
  • Throughput: 2.88 Tbps
  • Switching capacity: 1 Bpps
Ports 36 x 40 Gigabit QSFP+ (breakout compatible)
Processor 1 x Intel: 2.5 GHz
RAM 16 GB
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP, SSH, CLI
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, ECMP, RIPng, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), CIDR
Subtype 40 Gigabit Ethernet
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, REACH, EN 60825-1, VCCI Class A, GR-63-CORE, KN22 Class A, ETSI 300 019, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
TAA Compliant Yes
Power
Installed Qty 2
Max Supported Qty 2
Power Consumption Operational 1000 Watt
Power Device Internal power supply
Power Provided 1600 Watt
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required JUNOS
View full details
